American is proud to offer Integrated Solar Pump Stations that simplify installations by combining all necessary measurement, safety, fill, drain, flow and solar system controls into one easy-to-install assembly. These all-in-one assemblies save installing contractors the time it takes to locate, purchase and install these items separately. Integrated pump stations also save space and provide a professional-looking installation that customers will notice and appreciate.
FEATURES:
- • Integrated solar pump stations - Standard and Double Wall pump stations available.
- • Programmable electronic solar system control with advanced diagnostics and LCD display - cTUVus listed.
- • Multiple speed pumps - cULus listed.
- • Insulated and pre-plumbed all-in-one wall mounted assembly
- • Saves space, time and money – clean professional-looking installation.
- • Two Pt-1000 temperature sensors for solar loop and solar booster tank included.
- • Flow meter, temperature and pressure gauges.
- • Solar loop pressure relief valve.
- • Combination ball/check valves in supply and return lines allow easy servicing and prevent gravity thermo circulation.
- • Fill, drain, flow control valves - built-in air stripper to trap and remove air from the system manually
- • 120 VAC single phase power - with standard appliance cord/plug.

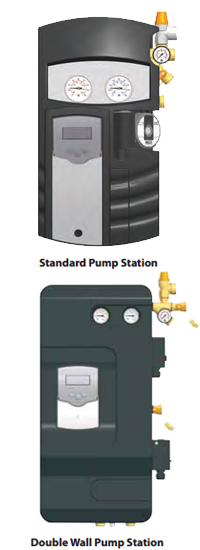

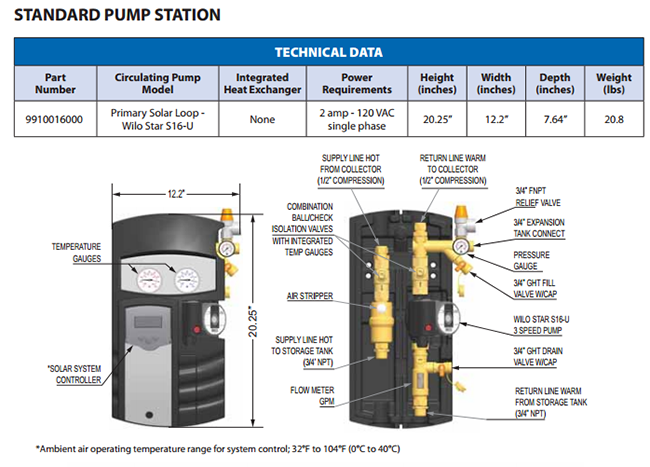

- • Standard Pump Station - for closed loop propylene glycol systems with heat exchangers located external to the pump station.

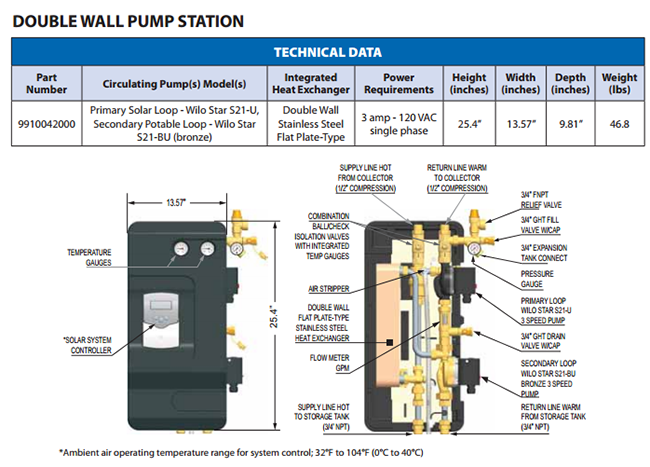

- • Double Wall Pump Station - for closed loop propylene glycol systems when double wall heat exchangers are required by local codes - these models have an integrated stainless steel (double wall) flat plate heat exchanger.
- • Double Wall Pump Station includes two circulation pumps - primary solar loop and secondary domestic water loop pumps.
- • Double Wall Pump Station includes variable speed pump control and bronze domestic water circulation pump.
- • Includes stainless steel flex line and wall mounting bracket for solar loop expansion tank (expansion tanks ordered separately).
- • 2-year limited warranty*
|
